High-energy Passively Q-switched DPSS Lasers
High-energy Q-switched DPSS Lasers
产品特点
-
Wavelength：1064nm、532nm
Repetition Rate：Up to 100Hz
Pulse Energy：Up to 10mJ
Pulse Width：<2.5ns
Polarization Ratio：>100:1
Compace design
Repetition Rate：Up to 100Hz
Pulse Energy：Up to 10mJ
Pulse Width：<2.5ns
Polarization Ratio：>100:1
Compace design
产品概述

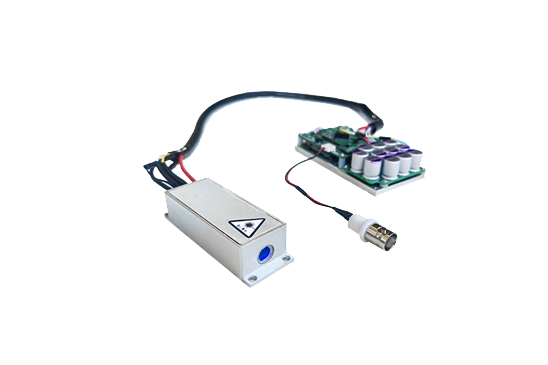

The RTSP-T Series high-energy laser is a diode-pumped, passively Q-switched solid-state laser featuring a stacked diode pumping configuration and fully sealed welding process. With integrated packaging of diodes, laser crystals, and optical components, it delivers high reliability and stability. The RTSP Series laser achieves output energy up to 10mJ with a pulse width of 2.5ns, and is available in wavelengths of 1064nm and 532nm. Designed primarily for material inspection applications, the system supports both internal and external triggering, and provides OEM-compatible miniaturized circuit boards to enable customer-specific secondary development.
规格参数
| Specifications 产品参数 | RTSP-T系列 | ||||||||
| Wavelength (nm) | 1064 | 532 | |||||||
| 波长 | |||||||||
| Repetition Rate (Hz) | 1~10 | 50 | 100 | 1~10 | 50 | 100 | |||
| 重复频率 | |||||||||
| Pulse Width (ns) | <3 | <5 | <2.5 | <3 | <5 | <2.5 | |||
| 脉冲宽度 | |||||||||
| Pulse Energy (mJ) | >10 | >6 | >5 | >2 | >5 | >3 | >2.5 | >1 | |
| 单脉冲能量 | |||||||||
| Energy Stability (rms,8h) | <3% | <5% | |||||||
| 能量稳定性 | |||||||||
| Beam Diameter (mm) | ~2 | ||||||||
| 光斑模式 | |||||||||
| Beam Profile | / | ＞80% Gaussian | / | / | / | ＞80% Gaussian | / | / | |
| 光斑形貌 | |||||||||
| Beam Divergence (mrad) | Horizontal @1/e² | <5 | |||||||
| 光束发散角 水平/竖直 | Vertical @1/e² | ||||||||
| Polarization | Linear ＞100:1 | ||||||||
| 偏振特性 | |||||||||
| Cooling | Air cooled | ||||||||
| 冷却方式 | |||||||||
| Power Supply | 24VDC | ||||||||
| 电源输入 | |||||||||
| Power Consumption (W) | ＜15@10Hz | ||||||||
| 系统功耗 | |||||||||
| Power Dimensions (W×H×L,mm) | 45×18×82.1 | 56×46×120 | 45×18×82.1 | 56×46×120 | |||||
| 电源尺寸 | |||||||||
| Laser Head Dimensions (W×H×L,mm) | 24×17.4×70 | 102×31.2×131.5 | 24×17.4×70 | 102×31.2×131.5 | |||||
| 激光头尺寸 | |||||||||
| Operation Temperature (℃) | 15~35 | ||||||||
| 工作温度 | |||||||||
| Storage Temperature (℃) | 0~60 | ||||||||
| 存储温度 | |||||||||
