Eyesafe 1535nm Er:glass Q-switched Lasers
1535nm Er:glass Lasers
产品特点
-
Wavelength：1535nm
Pulse Energy：100μJ~1mJ
Repetition Rate：1~20Hz
Compact size, lightweight
Wide operating temperature range (-40°C to +70°C)
Pulse Energy：100μJ~1mJ
Repetition Rate：1~20Hz
Compact size, lightweight
Wide operating temperature range (-40°C to +70°C)
产品概述

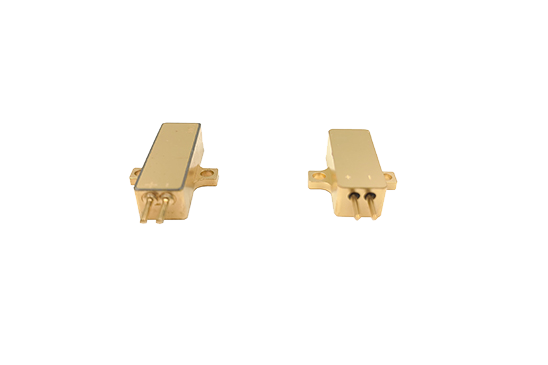

1535nm miniature solid-state laser is a diode pumped passively Q-switched Er:glass laser operating in the eye-safe wavelength band. This series adopts semiconductor packaging technology, integrating pump laser chips, laser crystals, and other components in a monolithic assembly. Key features include: compact size, lightweight (minimum 7g), wide operating temperature range (-40°C to +70°C), and high reliability/stability.
T1535 Series (low-repetition-rate 1535nm laser) serves as a high-quality light source for miniaturized laser ranging finder. Specifications:
Repetition rate: 1–10Hz
Single-pulse energy: 100μJ–1mJ
Pulse width: 4ns
Beam divergence: ≤8mrad
Weight: as low as 8g
Compact OEM circuit boards are available for easy integration and installation.
规格参数
| Specifications 产品参数 | T1535-100 | T1535-200 | T1535-300 | T1535-500 | T1535-1000 |
| Wavelength (nm) | 1535 | ||||
| 波长 | |||||
| Repetition Rate (Hz) | 10 | 5 | |||
| 重复频率 | |||||
| Pulse Energy (μJ) | ＞100 | ＞200 | ＞300 | ＞500 | ＞1000 |
| 单脉冲能量 | |||||
| Pulse Width (ns) | ＜4 | ＜5 | ＜10 | ||
| 脉冲宽度 | |||||
| Pump Pulse Width (room temperature, ms) | ＜1.5 | ＜2 | |||
| 泵浦脉宽 (常温) | |||||
| Pump Pulse Width (High/low temperature, ms) | ＜2.5 | ＜3 | |||
| 泵浦脉宽 (高低温) | |||||
| Energy Stability (rms,8h) | ＜3% | ||||
| 能量稳定性 | |||||
| Operating Current (A) | 8 | 10 | 12 | 20 | 40 |
| 工作电流 | |||||
| Operating Voltage (V) | 2.2 | ||||
| 工作电压 | |||||
| Beam Full Divergence (typ., mrad) | ＜12 | ＜12 | ＜10 | ＜10 | ＜8 |
| 全角发散角 | |||||
| Beam Profile | TEM00 | ||||
| 光束模式 | |||||
| Beam Quality, M² | ＜1.3 | ||||
| 光束质量M²因子 | |||||
| Weight (g) | ＜8 | ＜10 | |||
| 重量 | |||||
| Dimensions (mm) | 23×8×7 | 28×8×7 | 35×8×7 | ||
| 尺寸 | |||||
| Operation Temperature (℃) | -40~70 | -40~65 | |||
| 工作温度 | |||||
| Storage Temperature (℃) | -50~90 | ||||
| 存储温 | |||||
